Description

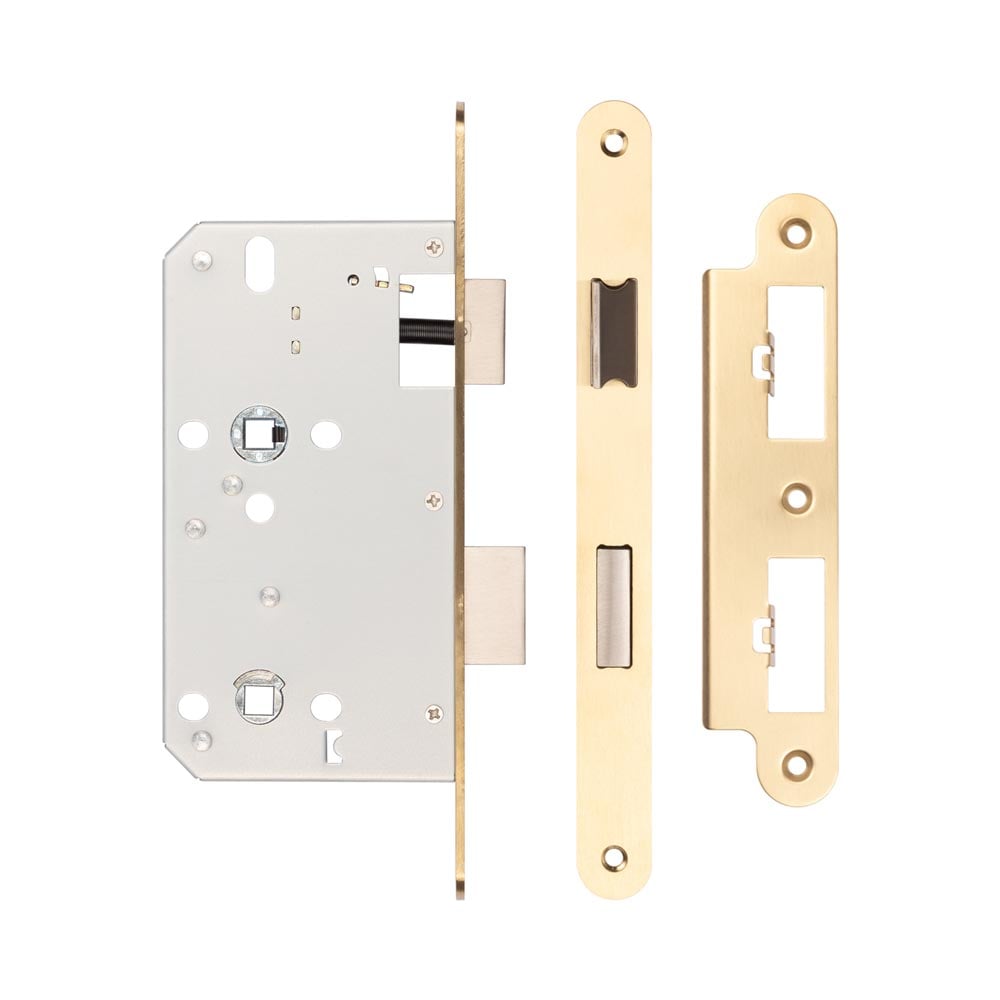

The Frelan JL-DB60R Bathroom Lock delivers dependable performance for commercial washrooms. Built around a robust Grade 304 stainless steel case, it is Certifire approved and FD30/60 fire rated, with square or radius forend options to suit new build and retrofit projects.
KEY FEATURES
Material Grade: 304 Stainless Steel
Finish: Satin Brass
Forend Options: Square (JL-DB60SB) / Radius (JL-DB60RSB)
Sprung: Yes
Fire Rating: FD30/60
Certifire: Yes
BS EN 12209: Yes
UKCA / CE Marked: Yes
Corrosion Grade: 3
Mechanical Warranty: 15 Years
Use: Internal / External (Residential / Commercial)
Suitable Door Thickness: 35–54mm
DIMENSIONS
Case Height: 235mm
Backset: 60mm
Forend Width: 22mm
Forend Height: 145mm
Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.
To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 9 & GRA 9.2)
