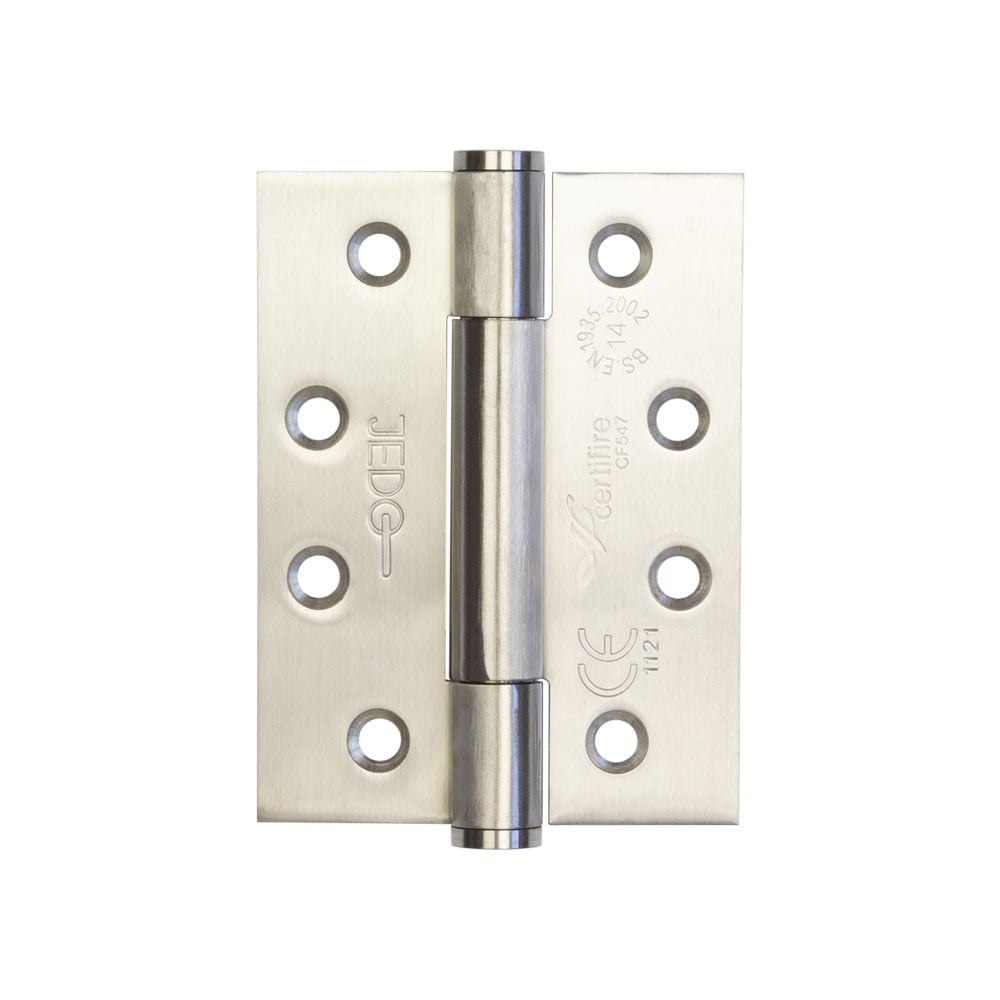

Certifire Stainless Steel Grade 14 Concealed Bearing Hinge 102x76x3mm Satin Stainless Steel - J9400SSS
The Frelan J9400SSS Concealed Bearing Hinge is a heavy-duty hinge designed for demanding internal doors, supporting up to 160kg using three hinges. Manufactured from Grade 201 stainless steel with a satin stainless steel finish, it offers FD30/60 fire rating and Certifire approval, making it ideal for commercial installations.
KEY FEATURES:
Type: Concealed Bearing Hinge
Material Grade: 201 Stainless Steel
Finish: Satin Stainless Steel
Max Door Weight: 160kg (3 hinges)
Hinge Grade: 14
Corrosion Grade: 4
Standards: BS EN 1935
Mechanical Warranty: 10 Years
Certifire: Yes
Fire Rating: FD30/60
Use: Internal, Residential / Commercial
DIMENSIONS:
Height (H): 102mm
Width (W): 76mm
Knuckle: 14.5mm
Thickness: 3mm
Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.
Note: Fire tested when used with intumescent hinge pads. We recommend requesting a sample before any modifications.
Sold individually
Includes fixing screws / fittings
