Description

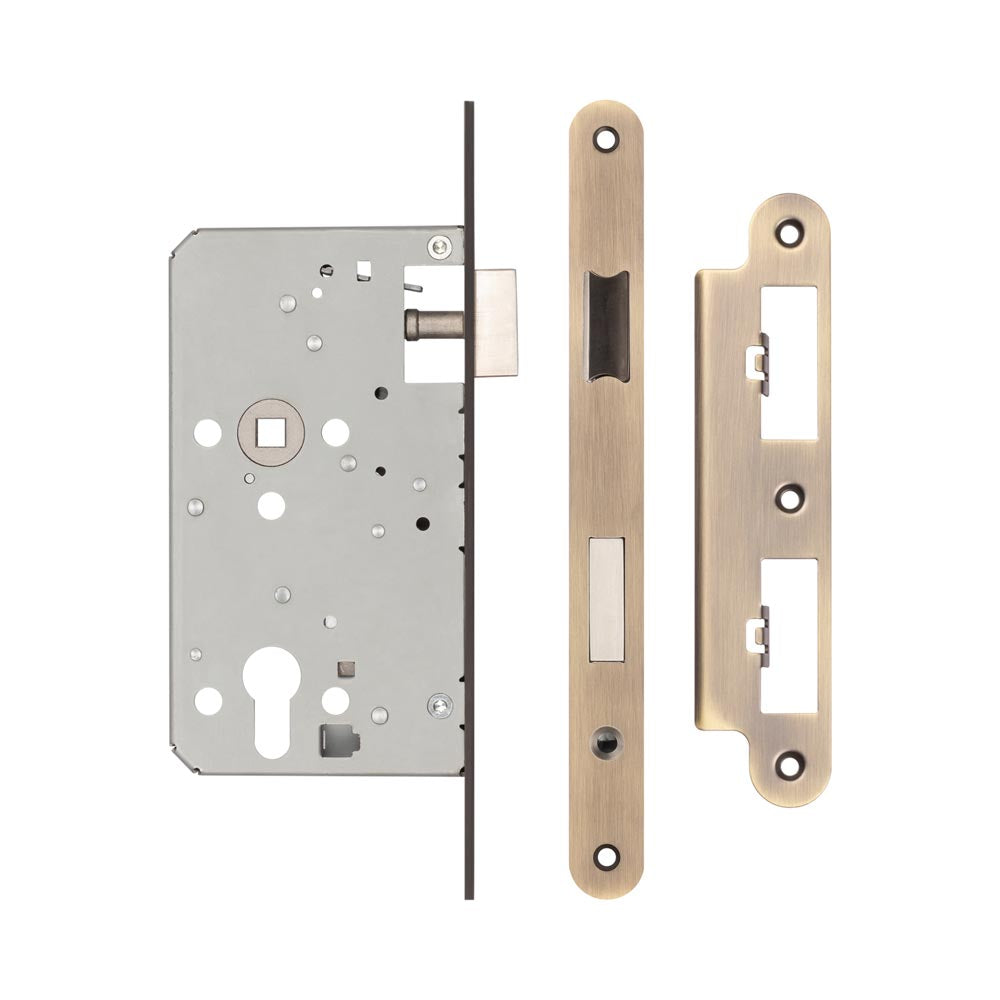

The Frelan JL-DE60R Escape Lock provides safe egress for commercial doors while maintaining security. The Grade 304 stainless steel body is FD30/60 fire rated and Certifire approved, with square or radius forend options for a clean, coordinated finish.
KEY FEATURES
Material Grade: 304 Stainless Steel
Finish: Antique Brass
Forend Options: Square (JL-DE60AB) / Radius (JL-DE60RAB)
Sprung: Yes
Fire Rating: FD30/60
Certifire: Yes
BS EN 179: Yes
UKCA / CE Marked: Yes
Corrosion Grade: 3
Mechanical Warranty: 15 Years
Use: Internal / External (Residential / Commercial)
Suitable Door Thickness: 35–54mm

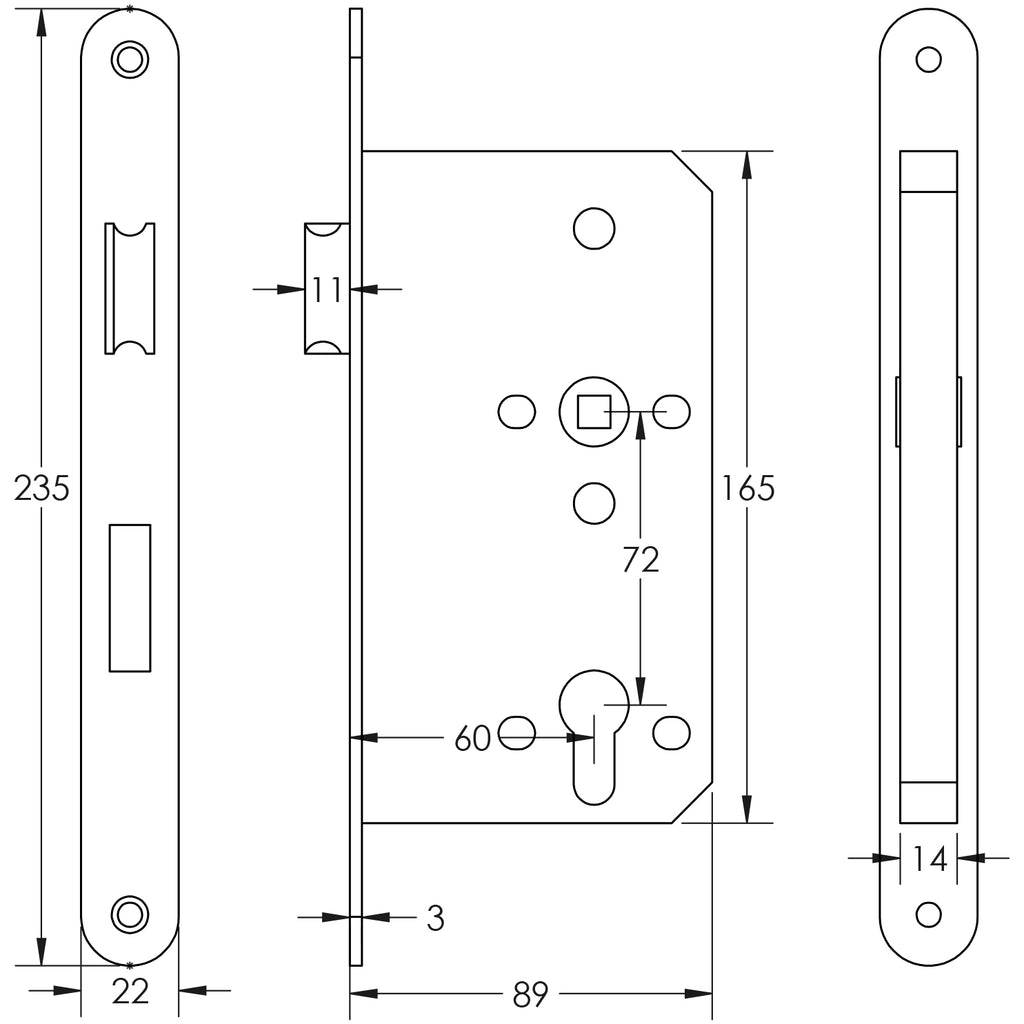

DIMENSIONS
Case Height: 235mm
Backset: 60mm
Forend Width: 22mm
Forend Height: 145mm
Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.
To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 9 & GRA 9.2)
STANDARDS & CERTIFICATIONS
